Photovoltaic Panels TOPCON Panels

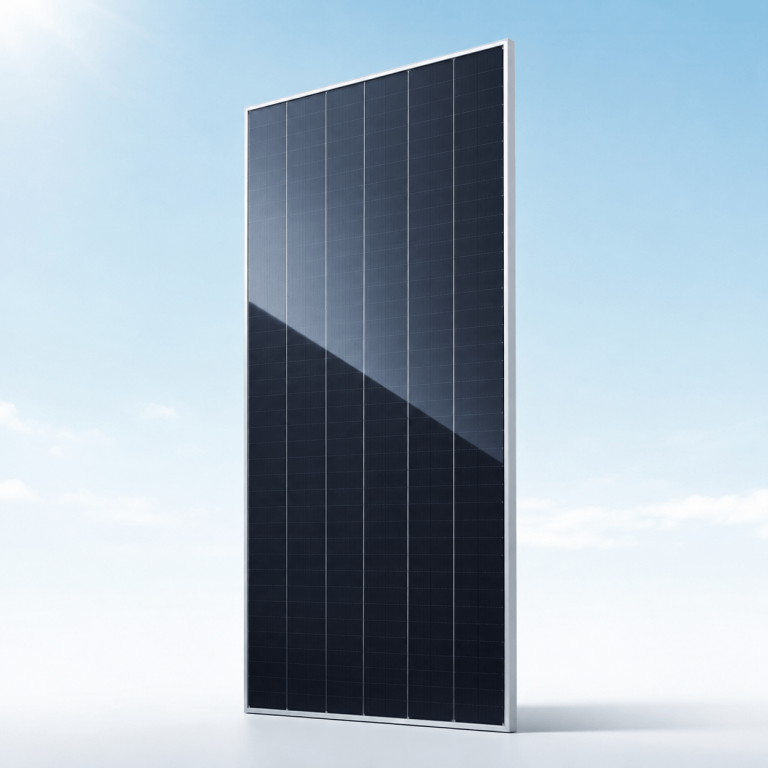

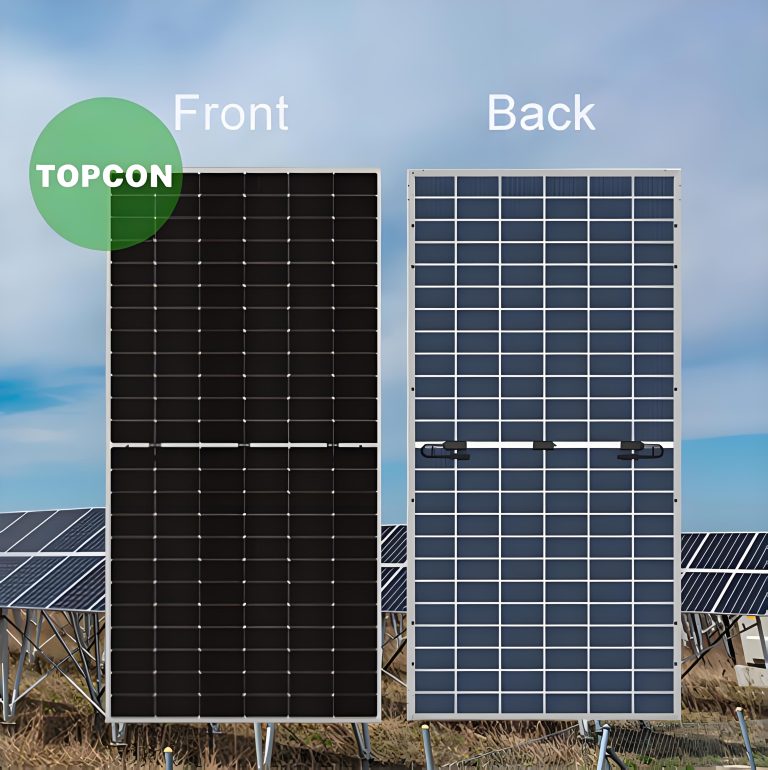

JAM66D50 GB is the Deep Blue 5.0 series N-type bifacial double-glass photovoltaic module, equipped with Bycium+5.0 cell technology and full-screen design, with power coverage of 645W-670W, maximum module efficiency of 24.8%, bifaciality of 85%, and a power temperature coefficient as low as -0.26%/°C, delivering excellent low-light power generation.

Request a Quote

Product Overview

Uses CSE composite structural reinforcement technology, with 2.0mm glass on both sides, paired with an anodized aluminum alloy frame. IP68 high-protection junction box can withstand loads of 5400Pa on the front and 2400Pa on the back, compatible with 1500V DC systems, operating temperature range -40°C~+70°C;
The product holds a full set of authoritative IEC and CE certifications, offering a 12-year material and process warranty and a 30-year linear power output warranty. The first year's power decay is only 1%, followed by an annual decay of 0.35%.
Each unit measures 2382×1134×30mm and weighs 32.8kg. It supports multiple installation methods and is suitable for residential, commercial, and industrial photovoltaic energy storage projects, effectively reducing the cost per kilowatt-hour and increasing long-term power generation returns.
