High-voltage energy storage cabinet

Product Overview

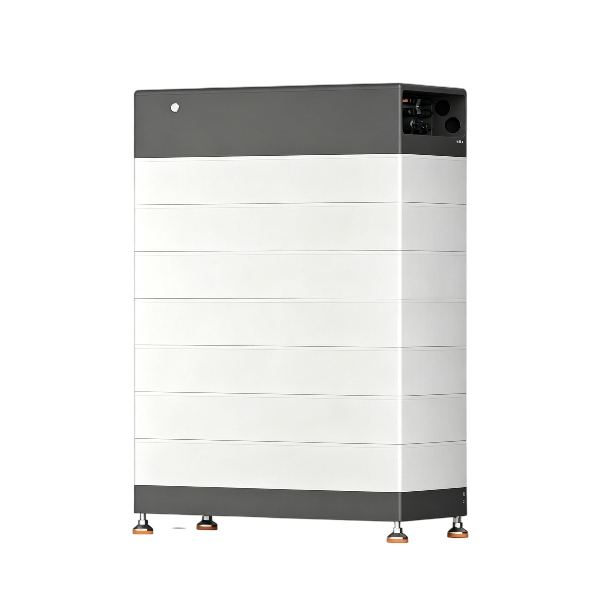

Each module has a capacity of 2.97kWh and weighs less than 30kg, allowing free combination to form multi-specification single unit capacities from 5.94kWh to 29.69kWh. It can be expanded up to 89.07kWh in parallel with three towers, and features patented blind plug-in connections supporting any SOC Optional upgrades at any time, with a single tower height below 1.3 meters, allowing a single person to install it on the ground.
The device has a maximum continuous charge/discharge current of 50A, a peak current of 98A in 15 seconds, a cycle efficiency of ≥95%, IP55 protection rating, stable operation across a wide temperature range of -20°C to 50°C, and is suitable for altitude Within 4000 meters, equipped with CAN/RS485 communication interface and optional WiFi stick, supporting SOC automatic balancing, remote fault diagnosis, and OTA upgrades.
It holds multiple international certifications including VDE2510-50, IEC62619, CE, UKCA, UN38.3, and offers a 15-year warranty. Over one million units are installed in over a hundred countries worldwide, perfectly matching BYD's full range of high-voltage energy storage inverters, suitable for residential grid connection, Scenarios with backup emergency power supply and off-grid photovoltaic energy storage.
