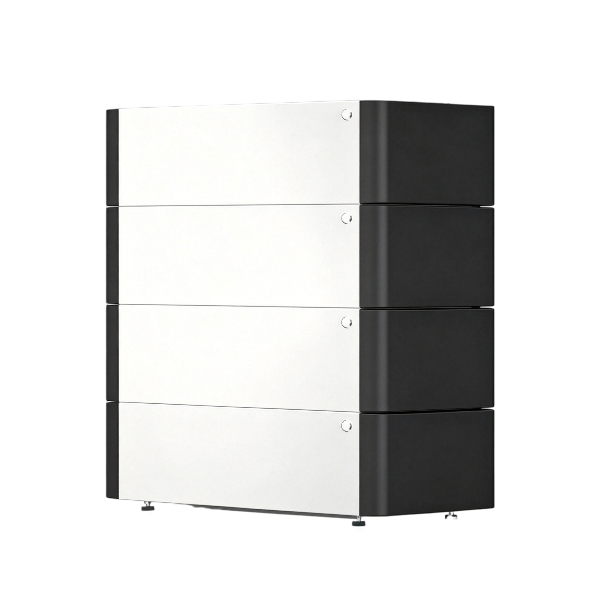

Low-voltage energy storage cabinets

Product Overview

It supports 1C rate charge-discharge and 100% deep discharge, with a continuous charge/discharge current of 100A and a peak current of 200A in 10 seconds. Up to 32 units can be expanded in parallel to 163.84kWh, and is compatible with mainstream energy storage inverters from brands such as BYD and GoodWe.
The entire device is installed in a floor-standing manner, with plug-and-play power cord and one-touch automatic configuration for simple and convenient operation. It comes with CAN and RS485 communication interfaces, and an optional WiFi stick paired with the BYD Energy app enables ×24/7 online monitoring, remote fault diagnosis, and firmware OTA updates.
The device has a cycling efficiency of ≥95%, charging is compatible with 0~55°C, discharge covers a wide temperature range of -20~55°C, suitable for altitudes up to 4000 meters, IP20 protection, holds authoritative CE, IEC62619, and UN38.3 certifications, and offers a 10-year warranty. Since 2002, BYD has been deeply cultivating lithium iron phosphate technology, with over a million units deployed in over a hundred countries worldwide, suitable for residential grid connection, emergency backup power supply, and off-grid photovoltaic energy storage scenarios.
